- Material: ABS+PC
- Maximum Incline: Around 40°
- Battery Capacity: 84V / 1110Wh 21700 Battery Cells**

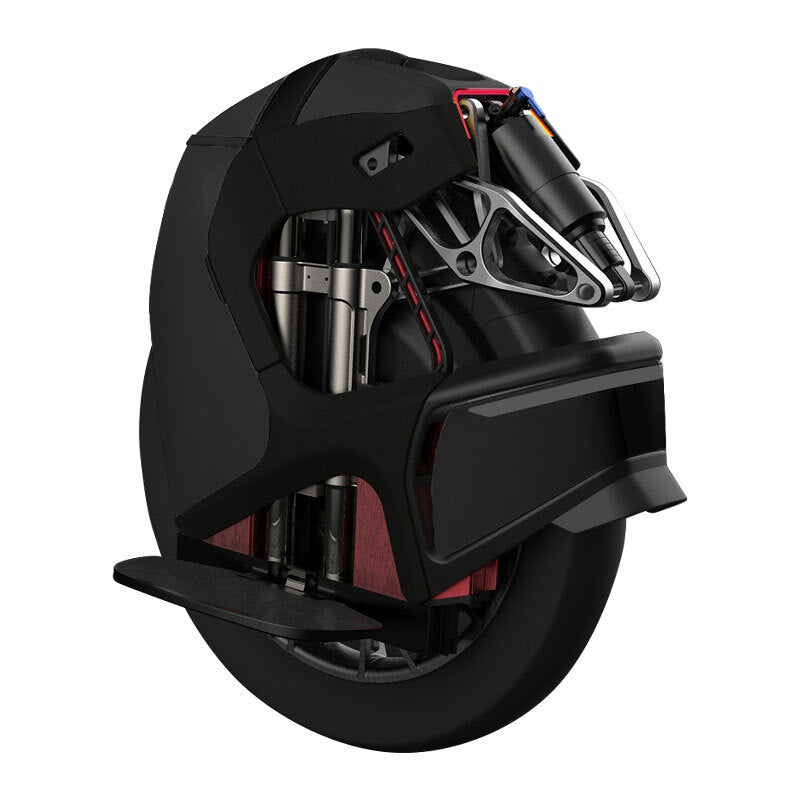

- Suspension: Adjustable X Shaped 200-57 Air Suspension
- (Using a variable lever the wheel has dampening travel distance of 100 mm which is transferred to the rear spring suspension with a travel distance of 57 mm).
- Operating Temperature -10° /+60°
- Charger Voltage: Input AC 80~240V,output DC 84V 2.5A
- Rated Power: 2200w Max Power: 5000w maximum torque of 140N.
- Dimension: 557mm(H) x 530mm(L) X 200mm(W)

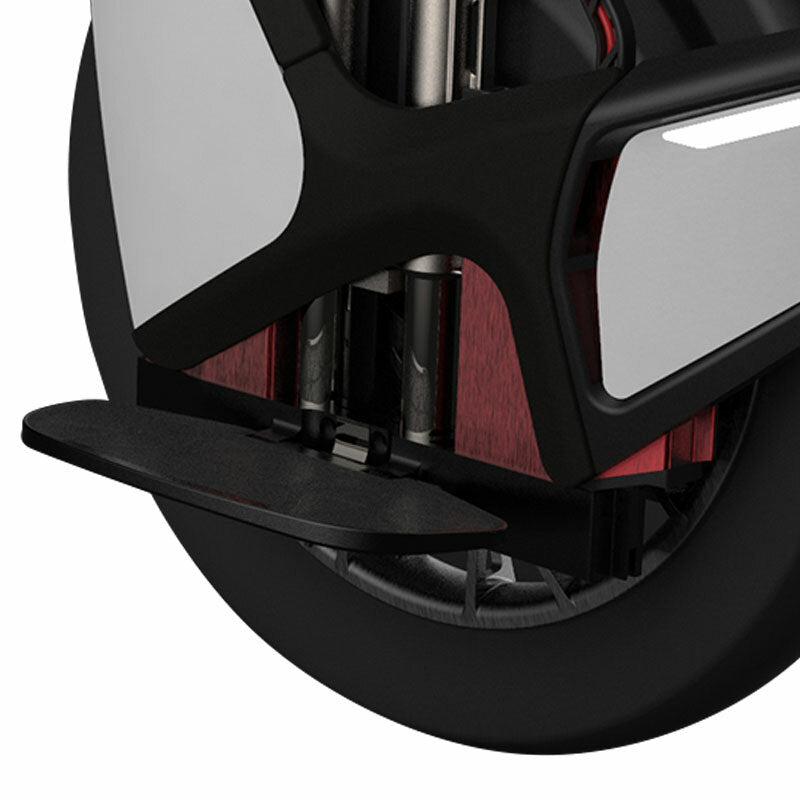

- Pedal Altitude: (from ground) 210 -110 mm
- Available Color: Black / Black & White
- EUC Port: Charging port; Switch port; Light sensor port; USB discharge port
- Lights: Rear light housing displays battery level, braking and turning signals all in one unit
- Standard Accessories: 1x Charger, 1x Manual, 1x Pump, 1x Warranty card, 1x QC certificate
- Protective Features:
- Lift Sensor: Lift sensor accurately senses and determines when wheel is lifted off the ground to stop tire rotation.
- Roll Protection: 45° left and right side. ( Motor stalls when over 45° ) Place the machine vertically on the ground will restart automatically, no need to restart manually
- Speed Limit Protection: Beep alarm or voice alarm when exceed limit speed
- Low Battery Protection: Low battery protection activated on 30% battery, speed will decreases linearly; when the battery is lower than 5%, voice alarm for charge, when battery at 0%, the front part of the pedal will rise to decelerate until full stop
- Higher Temperature Protection: When the motherboard reaches 80°C it will result tilt back. When the motor reaches 120°C it will result in tilt back.
- Alarm Feature:
- Switch On/Off: Short press power key: turn on Long press: hear a click then turn off
- Battery Indicate: Led shows battery level when EUC power on at rest
- Hardware Feature:
- Bluetooth: Bluetooth 4.0. Allowing strong stable data transmission
- USB Output: Quick charge 3.0
- Front Light: 2*5w light high beam with 2*4w short beam. Double the strength of the 16x, providing excellent illumination at night
- Temperature System: Temperature of the motherboard is continuously closely monitored to ensure rider safety
- Handle: Aluminum constructed handle designed for ergonomic pushing of the wheel or lifting of the wheel
- Main board: The motherboard is designed with a 4 layer structure, allowing for better stability performance. 12 large individual TO-247 imported MOS to sufficiently support the 2200W motor. MOS is attached to the aluminate body frame of the wheel for better heat dissipation
*(Factory alarm settings: Level 1- 18 km sound alarm Level 2- 19 km sound alarm Level 3- Sound alarm with tilt back)
Actual Maximum Speed, Range, and Hill Climbing Capability (Gradeability) may vary significantly due to external factors such as rider weight, terrain, temperature, riding style, wind direction, tire pressure, slope etc.
**(Smart BMS with balance and protect overshoot/ over discharge/ over current/ short circuit/ overheating function, support monitoring the battery conditions via KingSong APP")
